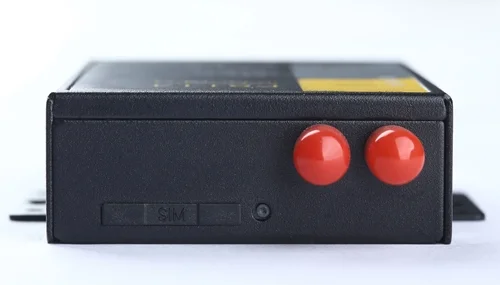

F 8414 ZigBee+WCDMA IP MODEM Technical Spec

BUILT FOR INDUSTRIAL

  • High-powered Industrial Cellular module, ZigBee module
  • Industrial Grade 32 bits CPU and Embedded Real Time Clock(RTC)
  • Low power consumption mode, including multi-sleep and trigger modes to reduce the power usage
  • Housing: Iron, providing IP30 protection
  • Power range: DC 5~35V
  • Modbus Ready Serial Terminal
  • Provide 5 x I/O, can achieve 5 digital input and output; Compatible with 3 pulse outputs, 3 analog inputs, 2 pulse counting function

    FAULT TOLERANCE and PROTECTION

    • Supports High availability mode, one main and another backup Supply 5 I/O channels, compatible 2 pulse wave output channels, 2 analog inputs and one pulse input counters.
    • Support multi data centers and it can support 5 data centers at the same time
    • Supports hardware and software WatchDog Timer (WDT) to ensure uptime
    • Supports Auto recovery mechanism (online status detection and auto redial to recover connection)
    • RS232/RS485/RS422 ports: 15KV ESD protection
    • SIM/UIM port: 15KV ESD protection
    • Power port: Reverse-voltage and Overvoltage protection
    • Antenna port: lightning protection(optional)

    Remote Management and interfacing

    • Includes Remote Management Software
    • Dynamic domain name(DDNS) and IP access to data center
    • Standard TCP/IP protocol Server and Client
    • Multi online trigger methods: SMS, Ring and Data Payload
    • Link disconnection upon timeout
    • APN/VPDN built in

    CONFORMS TO STANDARDS

    • Adopts standard terminal block interface for industrial application
    • Supports RS232, RS485 (or RS422) and ZigBee port that can connect to serial and ZigBee devices directly
    • Interface can be customized tp support TTL logic level and RS232
    • Support intellectual mode, enter into communication state automatically when powered

    Support



    REQUeST FOR A DEMO

    Name *
    Name

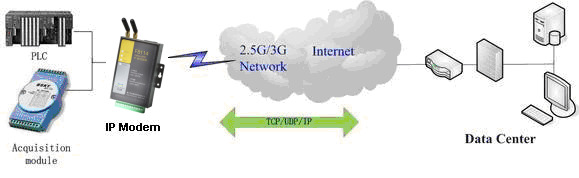

    FX8414 Architecture.png

    Celluar Spec

    Item Data
    Standard and Band
  • UMTS/WCDMA/HSDPA/HSUPA 850/1900/2100MHz
  • UMTS/WCDMA/HSDPA/HSUPA 850/900/1900/2100MHz(optional)
  • GSM850/900/1800/1900MHz
  • GPRS/EDGE CLASS 12
  • Bandwidth
  • HSUPA: 5.76Mbps (UL) / HSDPA: 7.2Mbps (DL)) / UMTS: 384Kbps (DL/UL)
  • TX power
  • Lower than 24dBm
  • RX Sensitivity
  • Lower than -109 dBm
  • ZigBee Spec

    Item Content
    Standard and Band
  • IEEE 802.15.4
  • ISM 2.4GHz
  • Indoor / Urban Range
  • 60m (Standard) / 90m (Enhanced Version)
  • Outdoor / RF line-of-Sight Range
  • 100m (Standard) / 800m (Enhanced Version)
  • Transmit Power
  • 0dBm (standard) / 22dBm (Enhanced Version)
  • Bandwidth
  • 250 Kbps
  • Reciever Sensitivity
  • - 95 dBm (Standard) / - 104 dBm (Enhanced Version)
  • Network Topologies
  • Point-to-Point, Point-to-Multipoint, Peer-to-Peer and Mesh
  • Number of channels
  • 16 Direct Sequence Channels, 15 Direct Sequence Channels (Enhanced Version)
  • Channels
  • 11-26, 11 to 25 (Enhanced Version)
  • Max Payload Size
  • 1024 Bytes
  • Hardware System

    Item Content
    CPU 32 bit CPU
    FLASH ROM 512 KB (Expandable)
    SRAM ROM 256 KB (Expandable)

    Interface Types

    Item Content
    Serial
  • 1 RS232 port and 1 RS485(orRS422) port, 15KV ESD protection
  • Data bits: 5, 6 ,7, 8
  • Stop bits: 1, 1.5, 2
  • Parity: none, even, odd, space, mark Baud rate: 110~230400 bps
  • Indicators "Power", "ACT", "Online", "ZigBee"
    Antenna
  • Cellular: Standard SMA female interface, 50 ohm, lighting protection(optional)
  • ZigBee: Standard SMA female interface, 50 ohm, lighting protection(optional)
  • SIM/UIM
  • Standard 3V/1.8V user card interface, 15KV ESD protection
  • Power
  • Terminal block interface, reverse-voltage and overvoltage protection
  • Power Input

    Item Content
    Standard Power DC 12V / 0.5A
    Power Power DC 5 ~ 35V

    Power Consumption

    Working States Power Usage
    Communication 50-90mA@12VDC; 115-165mA@5VDC
    Standby 25mA@12VDC; 45mA@5VDC
    Timing Power Off 0.6mA@12VDC ; 1mA@5VDC

    Physical Characteristics

    Item Content
    Iron IP30
    Dimensions 91x58.5x22mm
    Weight 210g

    Environmental Limits

    Item Content
    Operating Temperature -25~+65ºC
    Extended Operating Temperature -30~+75ºC
    Storage Temperature -40~+85ºC
    Operating Humidity 95% ( unfreezing)
