F8914 - Zigbee Terminal unit

BUILT FOR INDUSTRIAL

  • High Powered Industrial ZigBee processing Chip
  • Low power consumption design with multi sleep support
    • Timer Sleep
    • Deep Sleep

 FAULT TOLERANCE and PROTECTION

  • Supports High availability mode, one main and another backup Supply 5 I/O channels, compatible 2 pulse wave output channels, 2 analog inputs and one pulse input counters.
  • Support multi data centers and it can support 5 data centers at the same time
  • Supports hardware and software WatchDog Timer (WDT) to ensure uptime
  • Supports Auto recovery mechanism (online status detection and auto redial to recover connection)
  • RS232/RS485/RS422 ports: 15KV ESD protection
  • SIM/UIM port: 15KV ESD protection
  • Power port: Reverse-voltage and Overvoltage protection
  • Antenna port: lightning protection(optional)

CONFORMS TO STANDARDS

  • Adopts standard terminal block interface for industrial application
  • Supports RS232, RS485 (or RS422) that can connect to serial devices directly
  • Interface can be customized to support TTL logic level and RS232
  • Support intellectual mode, enter into communication state automatically when powered
  • Supports several work modes
    • Transparent Mode: Works as a serial line replacement
    • AT Command Mode: Manage and operate via AT commands

Support



REQUeST FOR A DEMO

Name *
Name

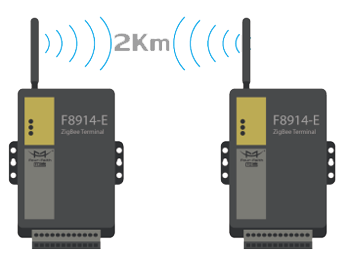

Point to Point.png

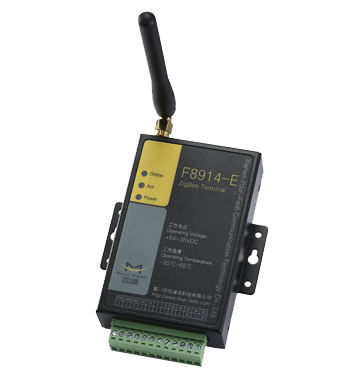

Interface View of the F8914

Architecture of ZigBee Terminal

Architecture of ZigBee Terminal

ZigBee Specifications

Item Content
ZigBee Chip Industrial ZigBee Chip
Standard and Band IEEE 802.15.4
ISM2.4~2.5GHz
Indoor/Urban Range 30m, 90m(With PA)
Outdoor/RF Line-of-Sight Range 500m, 2000m(With PA)
Transmit Power 2.82 mw (+4.5dBm), 100 mw (+20dBm) (With PA)
Bandwidth 250Kbps
Receiver Sensitivity -97dBm, -103dBm(With PA)
Network Topologies Point-to-Point, Point-to-Multipoint, Peer-to-Peer and Mesh
Number of channels 16 Direct Sequence Channels
Channels 11 to 26
Max serial buffer size 300Bytes

Hardware System

ItemContent
CPU Industrial ZigBee Processor

Interface Type

Item Content
Serial
  • 1 x RS232
  • 01 x RS485/422
  • 15KV ESD protection
  • Indicator"Power", "ACT", "ZigBee"
    AntennaStandard SMA female interface, 50ohm, Lightning protection
    Power Terminal block interface, reverse-voltage and overvoltage protection

    Power Input

    Item Content
    Standard Power DC 12V/0.5A
    Power RangeDC 5 ~ 35V

    Power Consumption

    Working States Power Consumption
    F8914-NRX Mode≤15mA/12V@4.5dBm
    TX Mode≤20mA/12V@4.5dBm
    Timing wake up≤3.5mA/12V@4.5dBm
    Deep Sleep≤2.5mA/12V@4.5dBm

    Working States Power Consumption
    F8914-ERX Mode≤15mA/12V@21dBm
    TX Mode≤80mA/12V@21dBm
    Timing wake up≤4.5mA/12V@21dBm
    Deep Sleep≤2.5mA/12V@21dBm

    Physical Characteristics

    ItemContent
    HousingIron, providing IP30 protection
    Dimensions91 x 58.5 x 22mm
    Weight205g

    Environmental Limits

    ItemContent
    Operating Temperature-40~+85ºC(-104~+185 ºF)
    Storage Temperature-40~+125ºC(-104~+257ºF)
    Operating Humidity95% ( unfreezing)
