What is ZigBee?



Zigbee is an IEEE 802.15.4-based specification for a suite of high-level communication protocols used to create personal area networks with small, low-power digital radios. It is a low-power, low data rate, and close proximity (i.e., personal area) wireless ad hoc network. low data rate, and close proximity wireless communication method.

ADVANTAGES OF ZIGBEE OVER LAN/WIFI

  • Less expensive than other wireless communications such as Bluetooh or Wi-Fi
  • Is secured with 128bit symmetric encryption keys
  • Mesh Network (Fault Tolerant)
  • Transmits data over long distances through mesh network of intermediate devices

TECHNOLOGY LIMITATIONS

  • Transmission distances of 1-2km (with line of sight)
  • A defined rate of 250kbit/s (suitable for sensors/input signals)


Typical Architecture:

A typical ZigBee is deployed as a mesh network. By leveraging, ZigBee terminal routers, we connect and transport the payloads via ZigBee. Strict industrial tests and certification ensures environment protection.

The data then hops through the different nodes to reach the ZigBee Routers or Modems. These devices convert and encapsulates the data back via standard IEEE 802.X Technologies for supported applications.

L33Tech typically provides proof of concepts, demo units and assist our customers in sizing up the number of nodes. After which, we guide the customers to deploy them and provide local RMA Services.

    USE CASES WRITE UPS

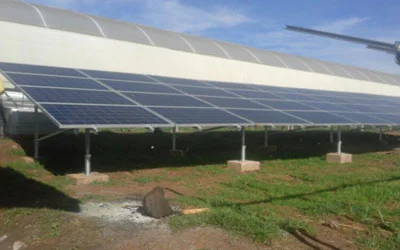

    Solar Power Remote Power Meter Monitoring

    Solar Power Remote Power Meter Monitoring

    Oil and Gas Pipeline Flow Monitoring

    Oil and Gas Pipeline Flow Monitoring

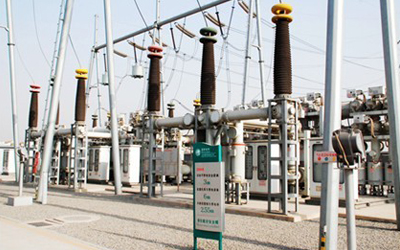

    Power Grid Monitoring

    Power Grid Monitoring


    BUILDING BLOCKS FOR ZIGBEE


    Zigbee Chipsets

    Embed these chip into your device to enable Zigbee communications. Low Power Consumption, intelligent waking of module allows your device to remain battery powered.

    Zigbee IP Modems

    Collect Signals using zigbee and send them to a remote server using GSM!

    Zigbee Terminal Units

    Collect new signals from the field effortlessly using a Terminal unit to consolidate and send your data through zigbee.

    Zigbee Routers

    Compatible with 4G/3G/2.5G cellular network, ZigBee network, WIFI network. And to achieve multiple TCP/IP protocols of ZigBee to WIFI, ZigBee to 4G/3G/2.5G
