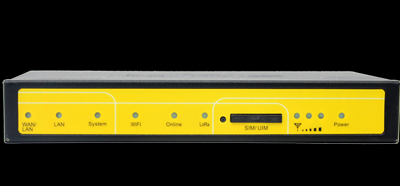

F8926L/GW and f8936 L-W LoRA, LORAWAN gateway and cellular router

*F8926 = 2 ports, F8936 = 4 ports

BUILT FOR INDUSTRIAL

  • High-Powered Industrial LoRA module

  • High-powered Industrial Cellular module, ZigBee module

  • Industrial Grade 32 bits CPU

  • Low power consumption mode, including multi-sleep and trigger modes to reduce the power usage

  • Housing: Iron, providing IP30 protection

  • Power range: DC 5~36V

  • Supports Modbus RTU Encapsulation

Standard Network and routing support

  • WAN and NAT capable with PPPOE support

    • Port Forwarding

    • Static Routing

    • DMZ Zone

  • SPI Firewall

    • MAC filtering

    • URL Blocking

    • QoS, Traffic Stats, link speed

  • Static IP, DHCP Server

  • Dynamic domain name(DDNS) and VPN Support (Server and Client)

    • IPSEC

    • L2TP

    • PPTP

    • OpenVPN

  • SNMP

  • NTP, RTC embedded

  • WIFI 802.11 b/g/n (WEP, WPA, WPA2)

    • AP mode

    • Repeater Mode

    • Repeater Bridge mode

  • Optional Protocols:

    • SMTP / POP3

    • OICQ

    • FTP SSHD

Remote Management and interfacing

  • Includes Remote Management Software via local web interface or remote web interface

  • SSH and Telnet

  • TCP/IP protocol terminal server and client support

  • Scheduled online and offline

FAULT TOLERANCE and PROTECTION

  • Supports hardware and software WatchDog Timer (WDT) to ensure uptime

  • Supports Auto recovery mechanism (online status detection and auto redial to recover connection)

  • RS232/RS485/RS422 ports: 15KV ESD protection

  • SIM/UIM port: 15KV ESD protection

  • Power port: Reverse-voltage and Overvoltage protection

  • Antenna port: lightning protection(optional)

  • Ethernet port : 1.5KV magnetic isolation protection

CONFORMS TO STANDARDS

  • Adopts standard terminal block interface for industrial application

  • Supports RS232, RS485 (or RS422) and ZigBee port that can connect to serial and ZigBee devices directly

  • Interface can be customized to support TTL logic level and RS232

  • Support intelligent mode, enter into communication state automatically when powered

Support



Demo Request






Celluar Spec

Item Data
Standard and Band
  • UMTS/WCDMA/HSDPA/HSUPA 850/1900/2100MHz
  • UMTS/WCDMA/HSDPA/HSUPA 850/900/1900/2100MHz(optional)
  • GSM850/900/1800/1900MHz
  • GPRS/EDGE CLASS 12
    		•
    Bandwidth
  • HSUPA: 5.76Mbps (UL) / HSDPA: 7.2Mbps (DL)) / UMTS: 384Kbps (DL/UL)
    		•
    TX power
  • Lower than 24dBm
    		•
    RX Sensitivity
  • Lower than -109 dBm
    		•

    WIFI Specification

    ItemContent
    StandardIEEE802.11b/g/n
    BandwidthIEEE802.11b/g: 54Mbps (max), IEEE802.11n: 150Mbps (max)
    SecurityWEP, WPA, WPA2, WPS (optional)
    TX power20dBm(11n),24dBm(11g),26dBm(11b)
    RX sensitivityLower than -72dBm@54Mpbs

    LoRA Specification

    ItemContent
    Commmunication Frequency Band433/470/780/868/915 Mhz
    Indoor/Urban Communication Distance2km
    Outdoor/Visual Communication Distance9km
    TX PowerLess than 30dBm
    RX PowerLess than -140dBm
    RF Data Rate6 Level Adjustable (0.3, 0.6, 1.0, 1.8, 3.1, 5.5Kbps)

    Hardware System

    Item Content
    CPU 32 bit CPU
    FLASH ROM 16 MB (Expandable to 64 MB)
    DDR2 128 MB

    Interface Types

    Item Content
    WAN/LANWAN/LAN configurable; 1 10/100 Mbps WAN port(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection
    LAN1 10/100 Mbps Ethernet ports(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection
    Serial
  • 1 RS232 port and 1 RS485(orRS422) port, 15KV ESD protection
  • Data bits: 5, 6 ,7, 8
  • Stop bits: 1, 1.5, 2
  • Parity: none, even, odd, space, mark Baud rate: 110~230400 bps
    		•
    Indicators "WAN/LAN", "LAN", "System", "WIFI", "Online", " LoRa ", "Signal Strength", "Power"
    Antenna
  • Cellular: 1 Standard SMA female interface, 50 ohm, lighting protection(optional)
  • LoRA: 1 Standard SMA female interface, 50 ohm, lighting protection(optional)
  • WIFI: 1 Standard SMA female interface, 50 ohm, lighting protection(optional)
    		•
    SIM/UIM
  • Standard 3V/1.8V user card interface, 15KV ESD protection
    		•
    Power
  • Standard 3-PIN power jack, reverse-voltage and over-voltage protection
    		•
    Reset Button
  • Reboot or restore to factory settings
    		•

    Power Supply

    Item Content
    Standard Power DC 12V / 0.5A
    Power Power DC 5 ~ 36V

    Power Consumption

    Working States Power Usage
    Standby 4G:156~170mA@12VDC 3G:162~201mA@12VDC 2G:134~193mA@12VDC
    Communication 4G:310~494mA@12VDC 3G:294~412mA@12VDC 2G:174~201mA@12VDC

    Physical Characteristics

    Item Content
    Iron IP30
    Dimensions 157 x 97 x 25 mm
    Weight 440g

    Environmental Limits

    Item Content
    Operating Temperature -35~+75ºC
    Storage Temperature -40~+85ºC
    Operating Humidity 95% ( unfreezing)
